5 axis CNC router with RTCP

The CNC router work with all 5 axis in coordination and RTCP feature,it designs with 3+2 axis for carving big size 3D sculpture of foam,wood,stone materials.

The models of our CNC router machine is optional with 4 or 5 axis.

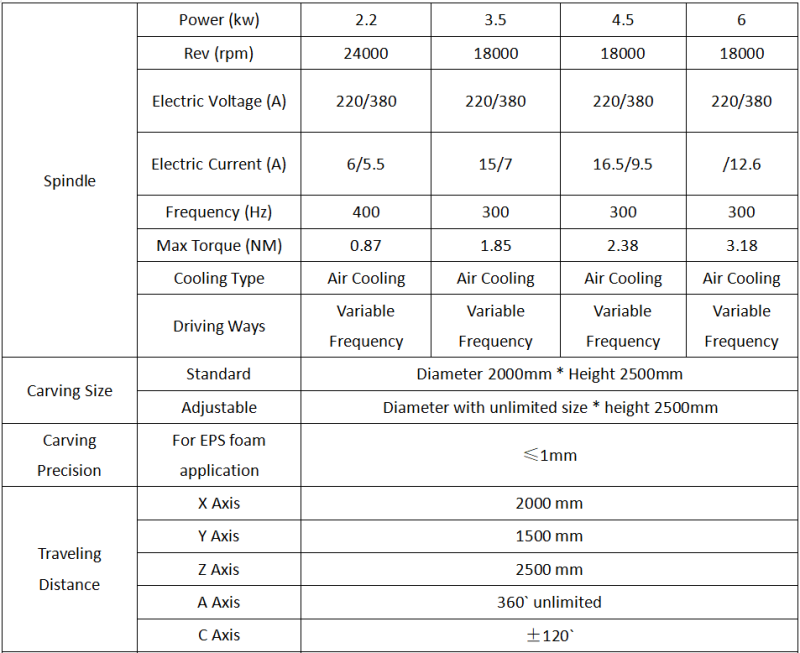

Parameter

cnc router parameter

The 5 axis CNC Router machine can be able to carve large size circular sculpture.The sculpture can be carved at one whole piece,No need extra work to pre split and joint together later.The vertical unit and flat bed are split.The max carving size is with 4m diameter and 2.5m height.
Anti-collision function:if carving materials touch the arm,the work will pause automatically,so,no need to watch the work process all the time.
The 5 axis CNC router machine is with all 5 axis work in coordination.
Good carving precision with RTCP feature.
Automatic setting for the alignment of carving knife.
For 3D modeling,end-user have the option to draw the CNC file or scan a sculpture with scanner.

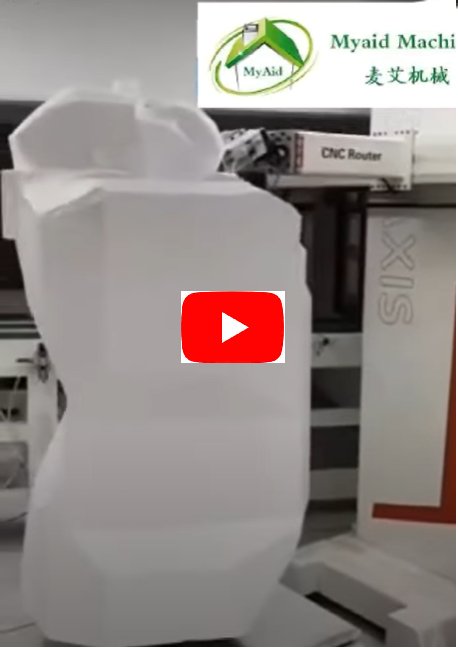

Youtube Video

5 axis cnc router

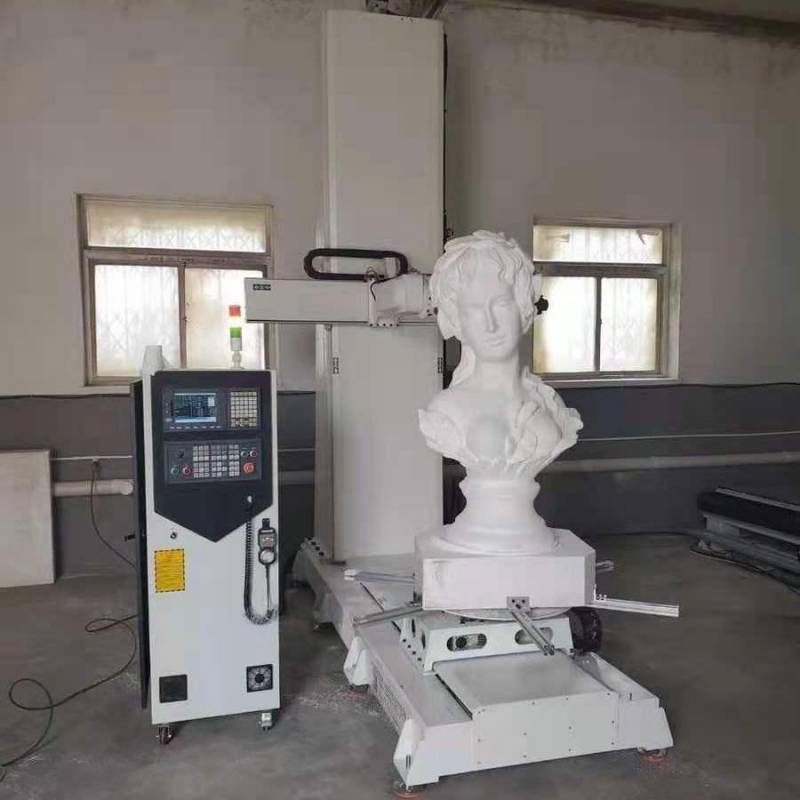

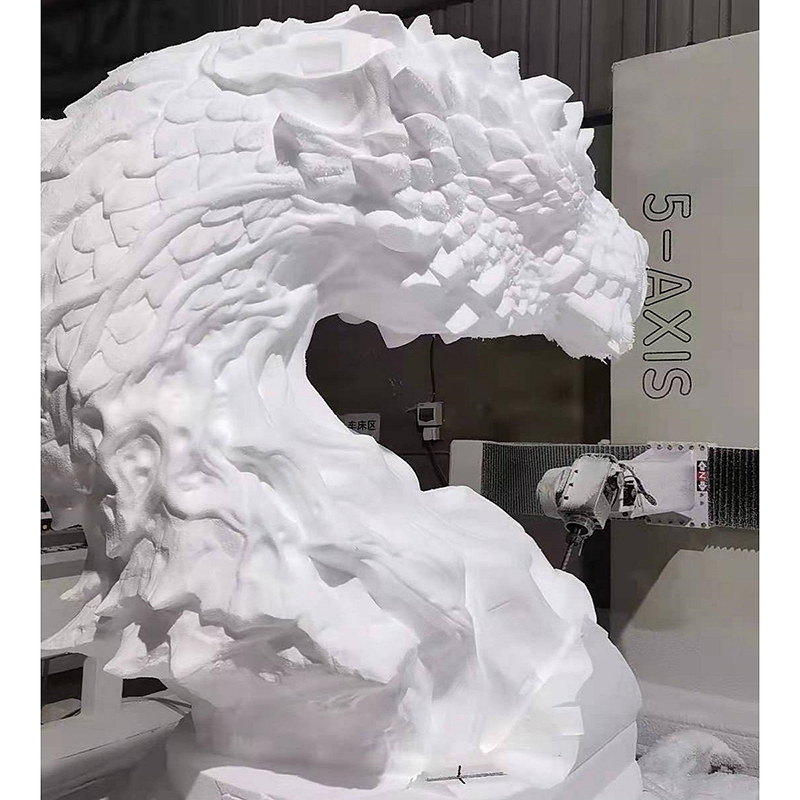

more Photo of 5 axis CNC router with RTCP
