hot wire corrugated styrofoam cutter with vertical cutting tools

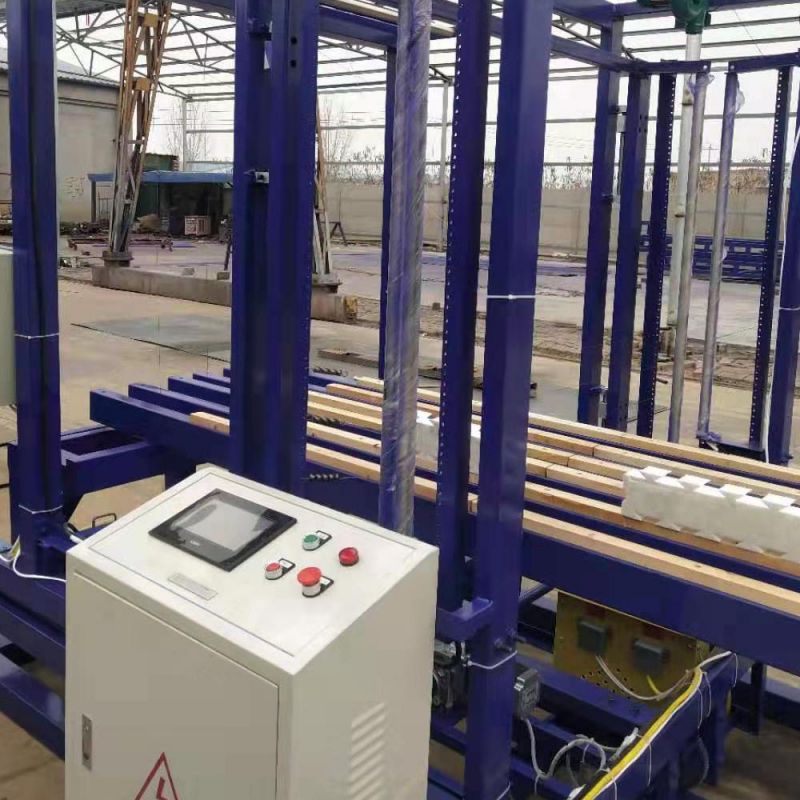

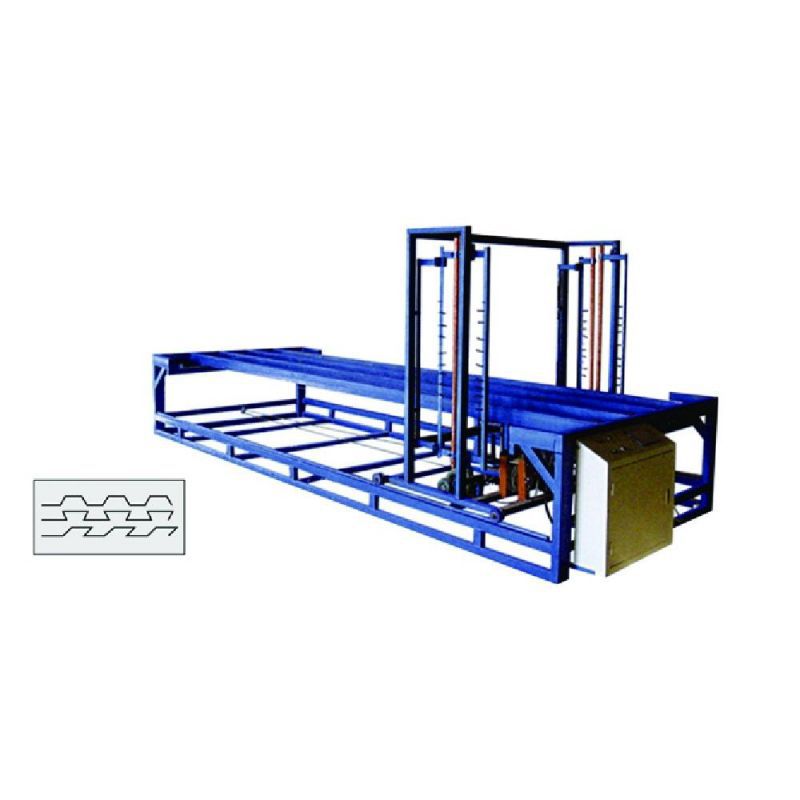

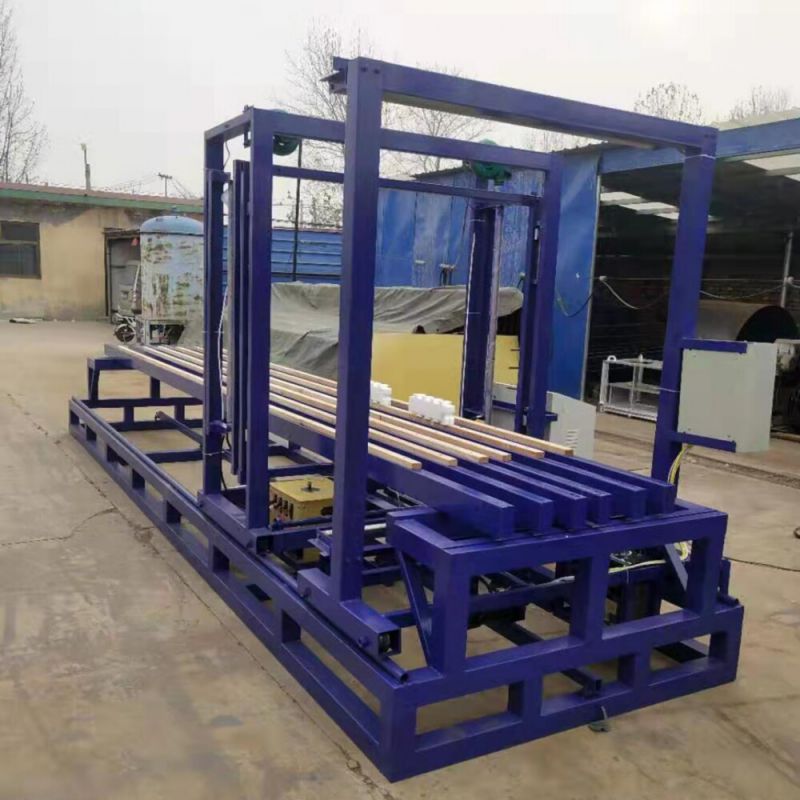

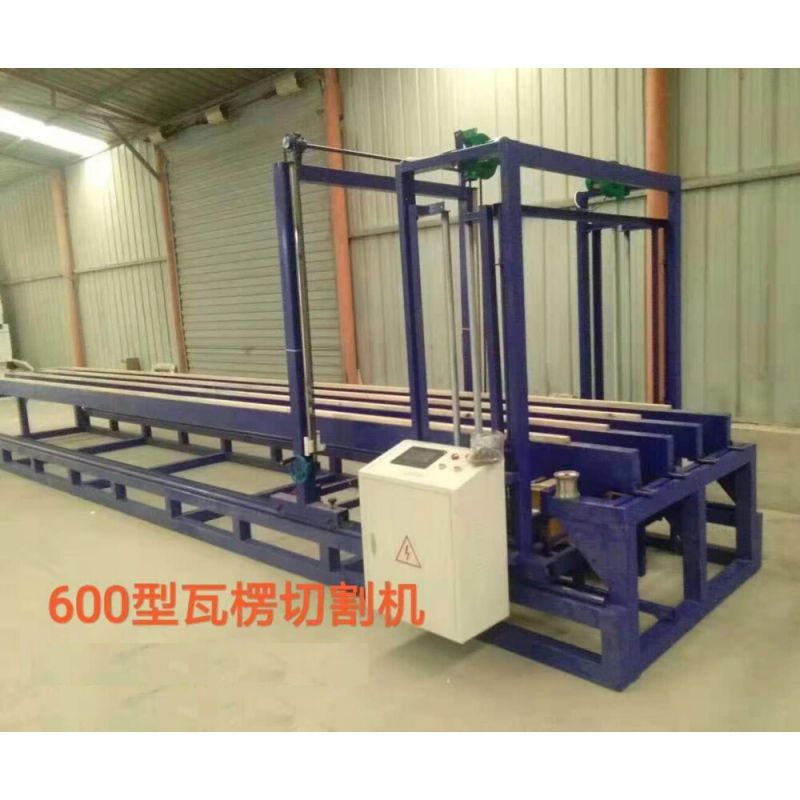

Corrugated styrofoam cutter is specially designed to cut the corrugation shape styrofoam blocks,tongue and groove blocks etc.There are two different types of machines which are for cutting corrugation on one side or two sides of eps styrofoam block.The hot wires are placed horizontally but in rows on vertical cutting tools.One block on the long side will be finished cutting in one travel.

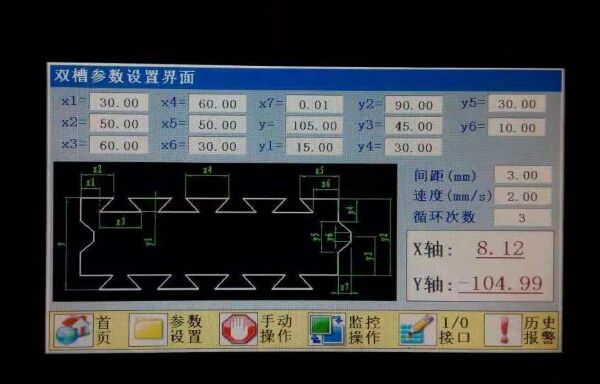

Setup display in software for grooves on two sides

foam groove cnc cutting machine

Finished cutting on two sides

dual grooves on insulation slab by styrofoam cutter

Machine Parameter

Model No.
Cutting Size
Machine Power
Machine Size
Machine Weight
PSC200
2000*1300*1300mm
22.3kw
4800*1950*2450mm
800kg
PSC300
3000*1300*1300mm
22.3kw
5800*1950*2450mm
1000kg
PSC400
4000*1300*1300mm
22.3kw
6800*1950*2450mm
1200kg
PSC600
6000*1300*1300mm
22.3kw
8800*1950*2450mm
1600kg
PSC800
8000*1300*1300mm
22.3kw
10800*1950*2450mm
2000kg

Youtube Video

foam corrugation cutting machine

more Photo of hot wire corrugated styrofoam cutter with vertical cutting tools
