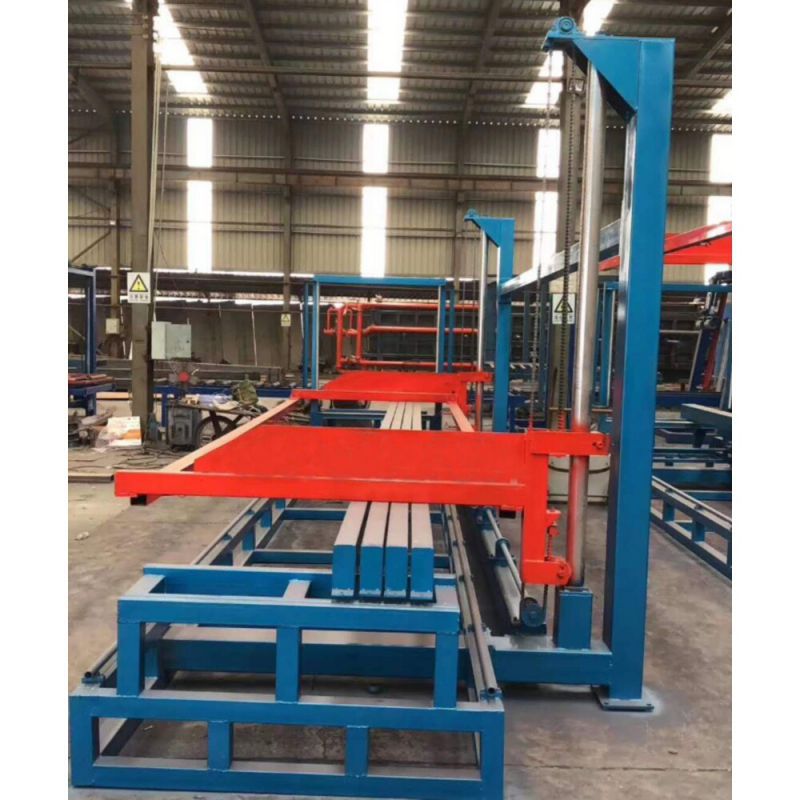

multifunctional eps cutting machine for eps insulation slabs

  • Item No.: CO155704
  • Price Range: USD4000 ~ USD8000 FOB Xingang port
  • Payment Option 1: Bank Transfer to Company Account
  • Payment Option 2: Paypal Secured Transaction
  • Send Enquiry

We see the eps cutting machine in the factory for making eps insulation slabs.With single machine,it can work independently for purpose of cutting eps slabs in different directions.So,we can see it as practical and economical machine in the eps industry.



There are some difference of this eps cutting machine with simple foam cutting machine,this machine is with multiple horizontal and vertical cutting wires,as well as multiple down cutting wires.So,it can work with horizontal/vertical/down cutting eps block into diffrent pcs.

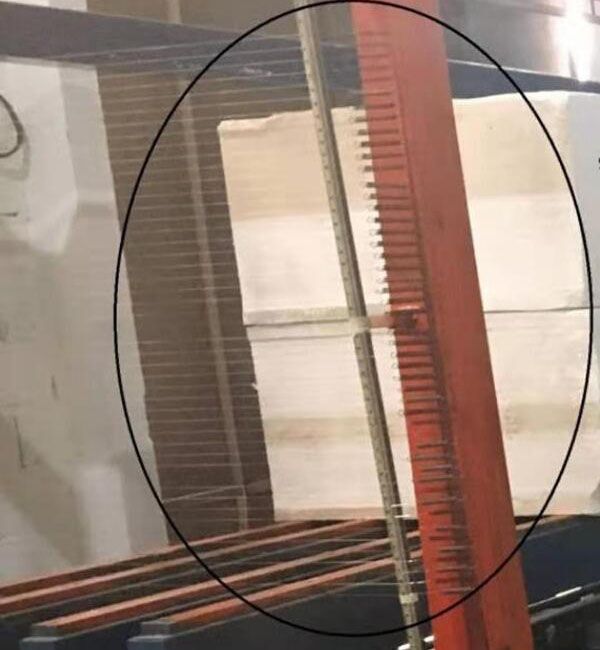

hot wire cutting tools

The eps cutting machine takes steel square tube and big power of motor and voltage transformer.These configuration can make the eps cutter heavy duty machine.

The hot wires are mounted on the holding screw manually,it makes the gap of hot wires adjustable,so,the cutting thickness of eps block are adjustable.

application of eps cutting machine

The temperature of hot wires are adjustable.

The moving speed of frames are adjustable.

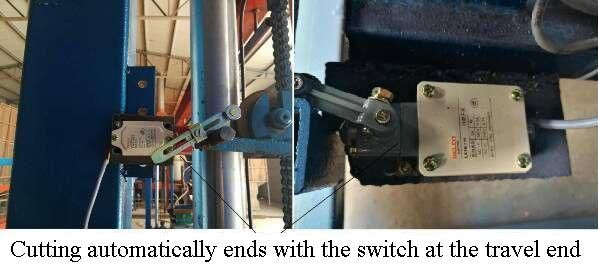

The frame can automatically ends moving at the end of cutting,because the travel switch is installed at the end.
automatic eps cutter - travel switch unit
Foam cutting work on the eps cutting machine uses nichrome hot wire (Cr20Ni80) to cut through eps styrofoam materiasl. The wire can be heated with electricity conduction on the machine.Hot wire moves through the eps styrofoam material linearly and melts it.

Specification

Item
PSQ200C
PSQ400C
PSQ600C
PSQ800C
Max cutting size
2000*1300*1300 mm
4000*1300*1300 mm
6000*1300*1300 mm
8000*1300*1300 mm
Machine power
22.3kw
22.3kw
22.3kw
22.3kw
Machine size
4400*2600*3250 mm
6400*2600*3250 mm
8400*2600*3250 mm
10400*2600*3250 mm
Machine weight
1300kg
2000kg
2800kg
3200kg
