EPS moulding CNC cutting machine from China

The EPS mouldings like cornice,roman column,eaves,arch,window trimming etc are made by a package of machines including CNC foam cutting machine,arc cutter,foam coating machine and mortar mixer etc.

The EPS moulding CNC cutting machine takes multiple hot wires for cutting foam block into multiple foam moulding at one time.

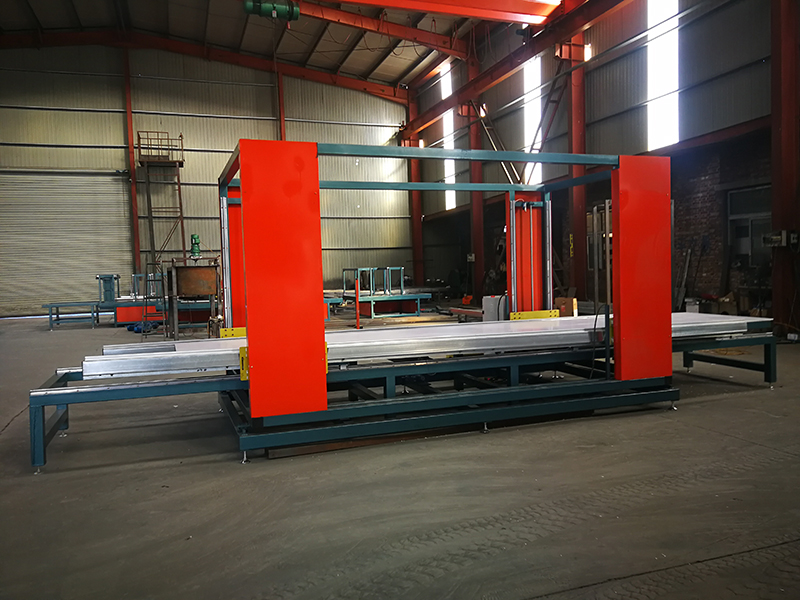

EPS moulding CNC cutting machine

It is 2 axis EPS moulding CNC cutting machine.

Cutting size:6000*1250*1250
X axis travel distance:1800mm
Y axis travel distance:1300mm
Software:Devfoam
Arduino Control unit.

Item
Unit
CNCPSQ3000
CNCPSQ6000
Cutting Size
mm
3000*1250*1250
6000*1250*1250
Travel Distance -X axis
mm
1800
1800
Travel Distance -Y axis
mm
1300
1300
Cutting speed
M/min
0-2000
0-2000
Power
kw
7.3
7.3
Voltage
V
380
380
Machine size
mm
3000x2600x2500
6100* 2600* 2400
Overall weight
kg
900
1100
Wire Oscillation

Optional
Optional

With hot wires vibration side to side,you can
          * cut eps styrofoam with water content,
          * cut non flammable eps styrofoam etc.
          * make cut 90' right angle nicely.
          * increase cutting speed by 1/3 capacity.

After you cut with plain EPS moulding,you feed them into foam coating machine to coat mortar.The entire moulding will be completed.

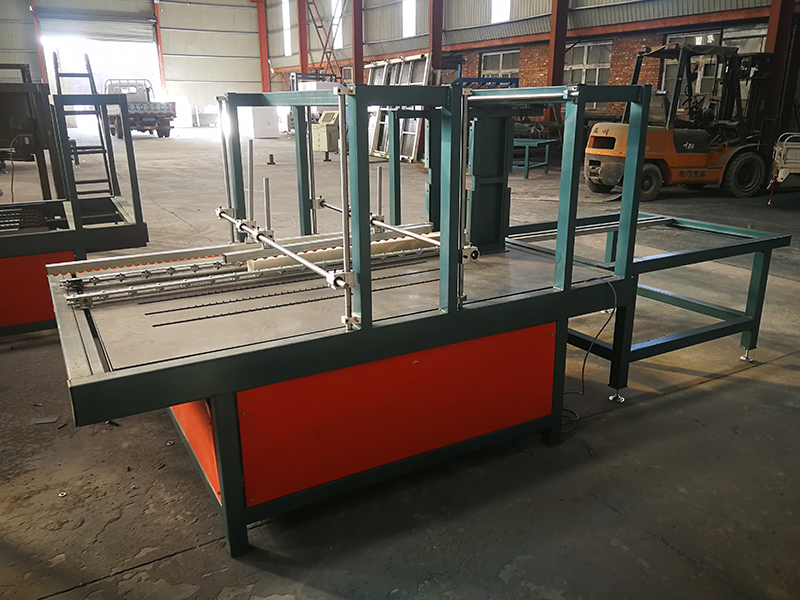

EPS moulding - Coating machine

EPS moulding system take expanded polystyrene foam as core materials,the exteriors are mesh cloth and polymer mortar on EPS moulding which are rapidly developed in the market.The reason is that EPS moulding owns advantages that other moulding do not perform with it.The EPS moulding can be good for installation on exterior wall which can be demonstration of elegance and classic of European style.The GRC moulding is heavy and it takes long time to install it,while as,EPS moulding is light,economical,durable.and it has no toxic and it is fire proof.so,it takes market of GRC moulding.
                                                          eps cornice moulding
We welcome you see the working video for our EPS moulding CNC cutting machine on the page of our website.
