Fast Wire Cutter

Fast Wire CNC Insulation Cutter

Item No.: CO44316556
Send Enquiry

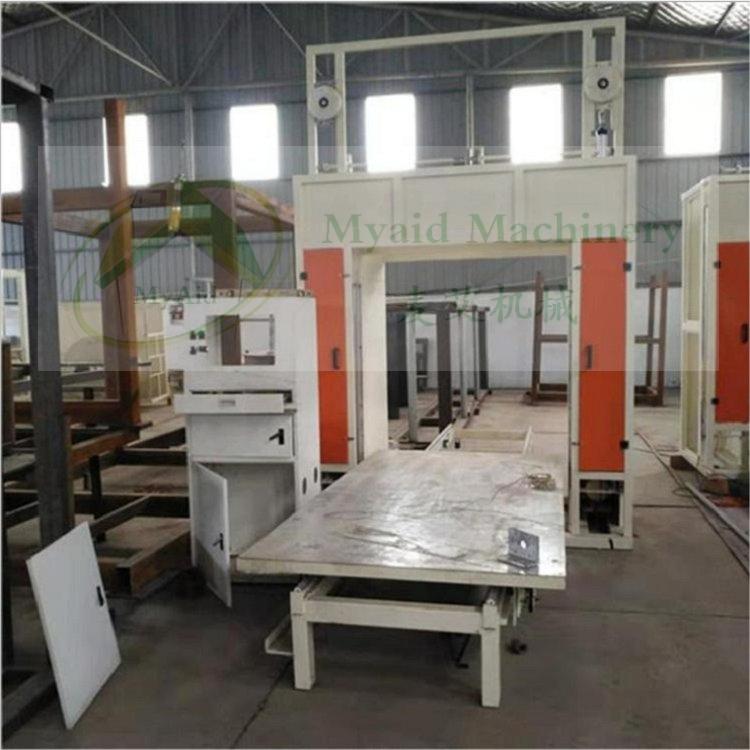

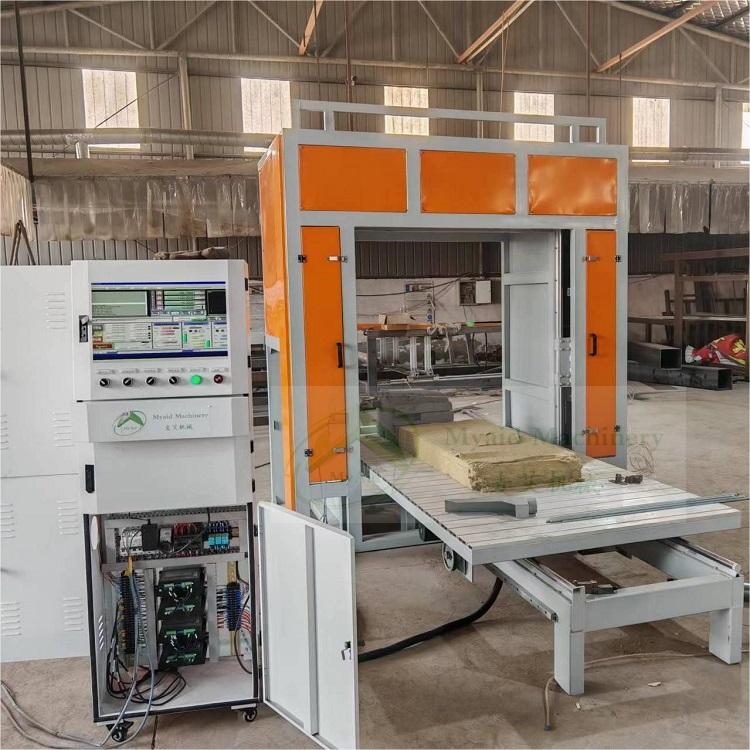

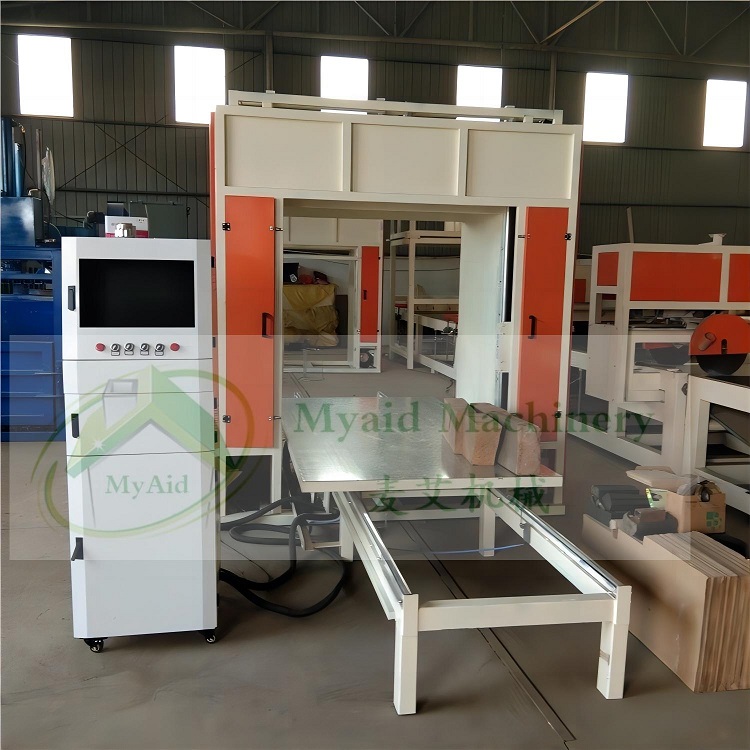

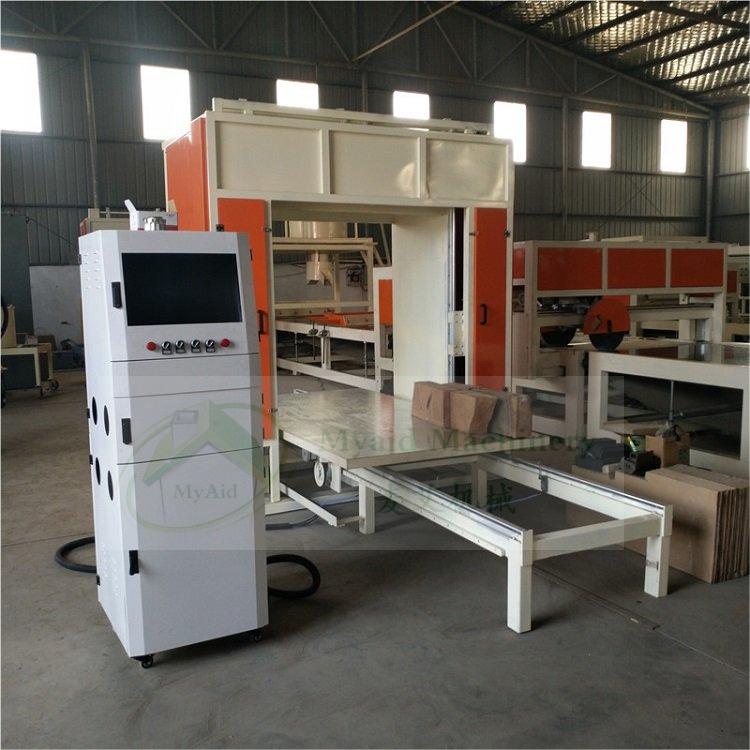

The CNC insulation cutter uses abrasive wire to cut various insulation materials.The abrasive wire moves at fast speed revovling around steel gantry.The gantry can move up and down,the table moves left and right.Users can get insulation materials to be cut into 2D models.

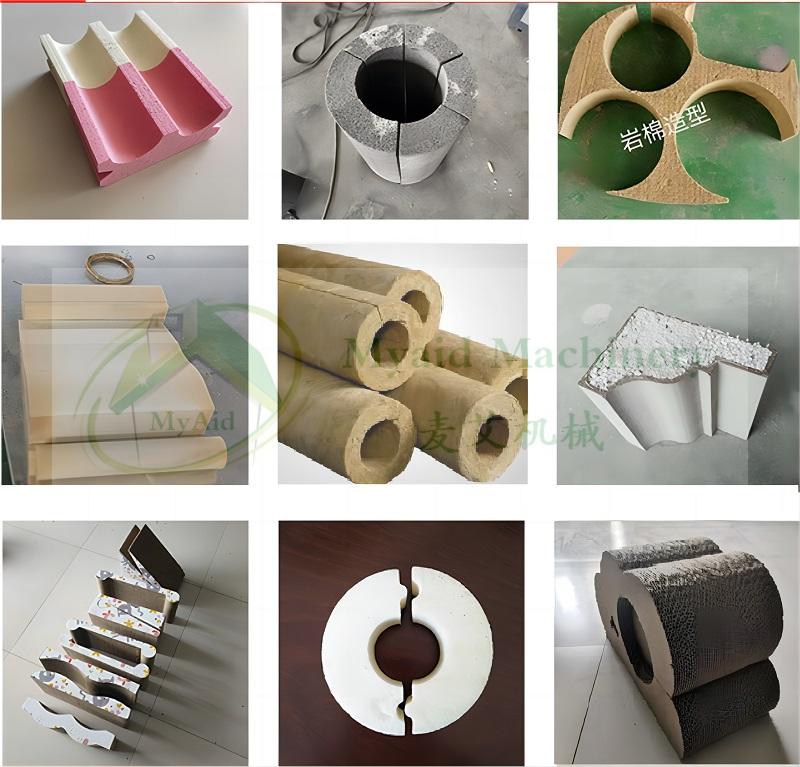

CNC cut foam insulation

Materials Application

Rigid polyurethane foam (RPUF) - PUR

Polyisocyanurate - PIR, polyiso, ISO

Foamed polypropylene - PP

Closed cell polyethylene foam - PE

Polyurethane foam - PU

Rebound foam, chip foam

Mineral wool - MW

Glass wool

Calcium silicate (eg. Skamol)

Rockwool

Flexible copolymer (expanded rubber, foam rubber) - EVA

Phenolic resin foam - PF

Melamine sponge, melamine resin foam

Expanded polystyrene - EPS*

Extruded polystyrene - XPS*

Foam glass, cellular glass (eg. Foamglass)

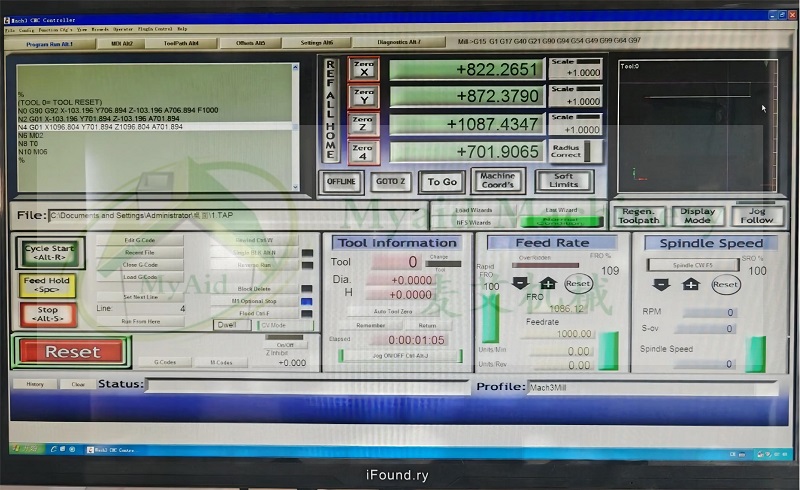

mach3 contour program

Parameter

Model No.	CNCPSQ2500	Gantry Max lift height	3200mm
Cutting Size	2500x1250x900mm	Abrasive Wire dia.	1.3/1.5/1.8/2.0/2.2 mm
Machine Size	4000x2100x2300mm	Cutting wire tension	Pneumatic
Machine Weight	1200kg	XY axis Motion	Gear and rack
Cutting Speed	0~6m/min	De dust system	Bagging type
Total Power	3kw	Control system	Mach3
Abrasive Wire Length	6150mm	Computer	Yes
